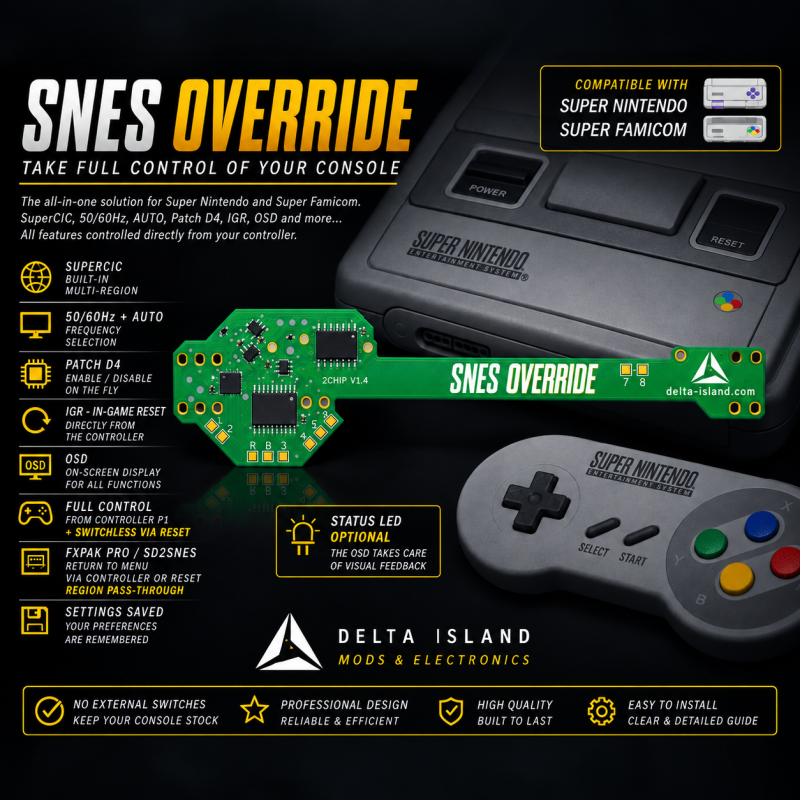

SNES Override – 50/60 Hz Mod with OSD and Region Unlock for Super Nintendo

SNES Override – 50/60 Hz Mod with OSD for Super Nintendo

SNES Override is an advanced modification module designed for PAL and NTSC Super Nintendo consoles. It provides frequency selection, region bypass features and convenient access to the main functions directly from the controller.

Main features

• 50 Hz / 60 Hz selection from the controller
• Automatic mode based on the game region
• Pairing mode for SD2SNES / FXPAK Pro
• Switchable D4 region patch
• In-Game Reset from the controller
• Return-to-menu support with compatible flash cartridges
• On-screen display for mode changes
• LED indication of the selected mode
• Automatic settings memory

Controller-based operation

The different modes are activated using button combinations. No additional switch or visible modification to the console shell is required.

SD2SNES / FXPAK Pro compatibility

When using an SD2SNES or FXPAK Pro, we recommend setting SNES Override to Pairing mode with D4 OFF, as the flash cartridge already applies its own region patch.

Installation and compatibility

This product requires opening the console and performing soldering work. Installation by an experienced technician is recommended. Please check your motherboard revision before purchasing.

Currently supported motherboards:

• SHVC-CPU-01
• SNSP-CPU-01
• SNSP-CPU-02
• SNS-CPU-GPM-01
• SNS-CPU-GPM-02
• SNS-CPU-RGB-01
• SNS-CPU-RGB-02
• SNS-CPU-APU-01

Support for 1CHIP motherboards and SNES Jr. / Super Famicom Jr. consoles is planned for a future release.

View the complete SNES Override installation and user guide

Enjoy PAL, NTSC and Japanese Super Nintendo games with a more flexible, convenient and user-friendly console.
